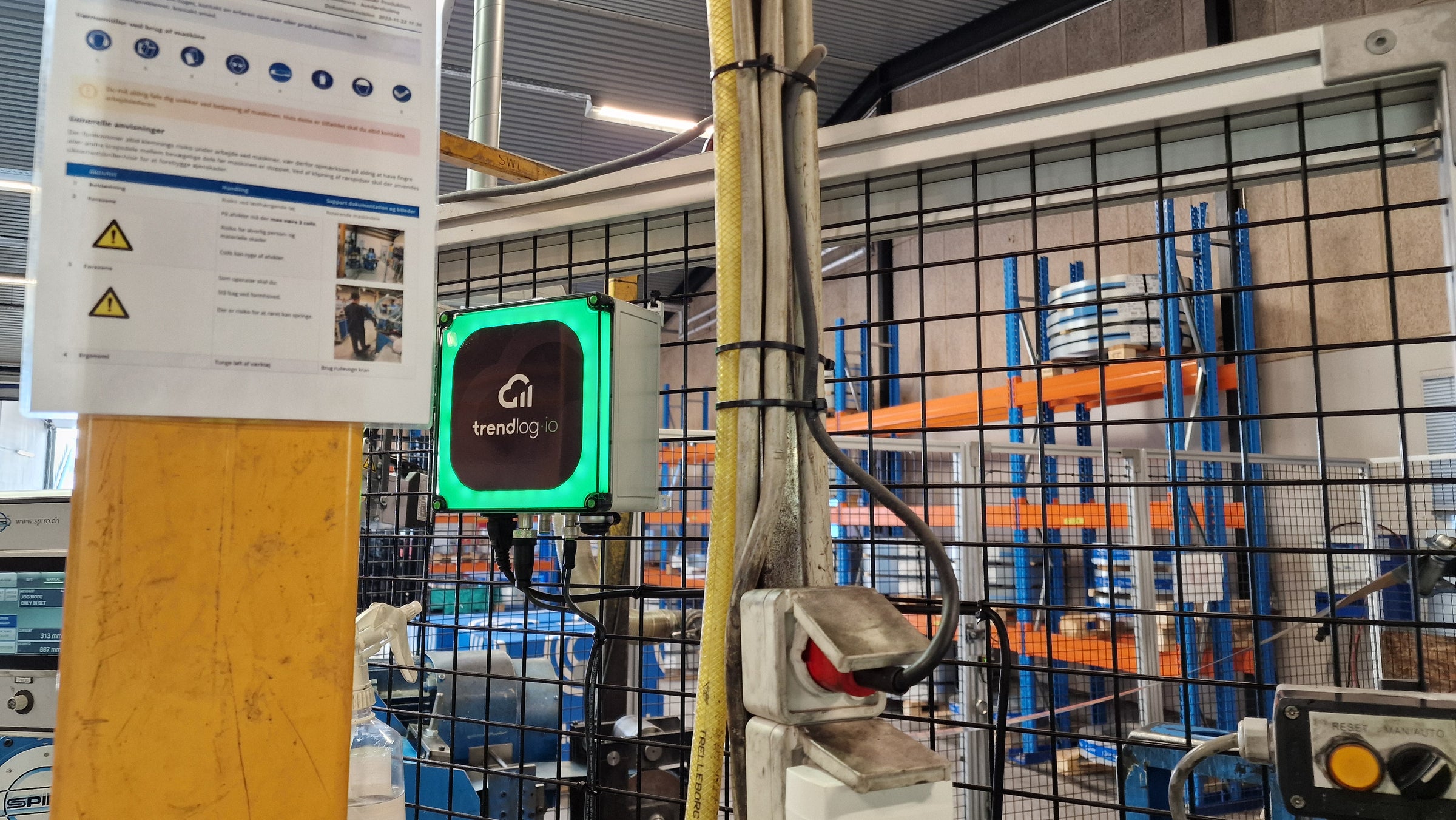

Plug & Play Installation
Installation is simple and requires only a few steps. Connect your sensors and signals, plug in the network cable, and power the device. The system will automatically start sending data to your dashboard with no manual configuration required.

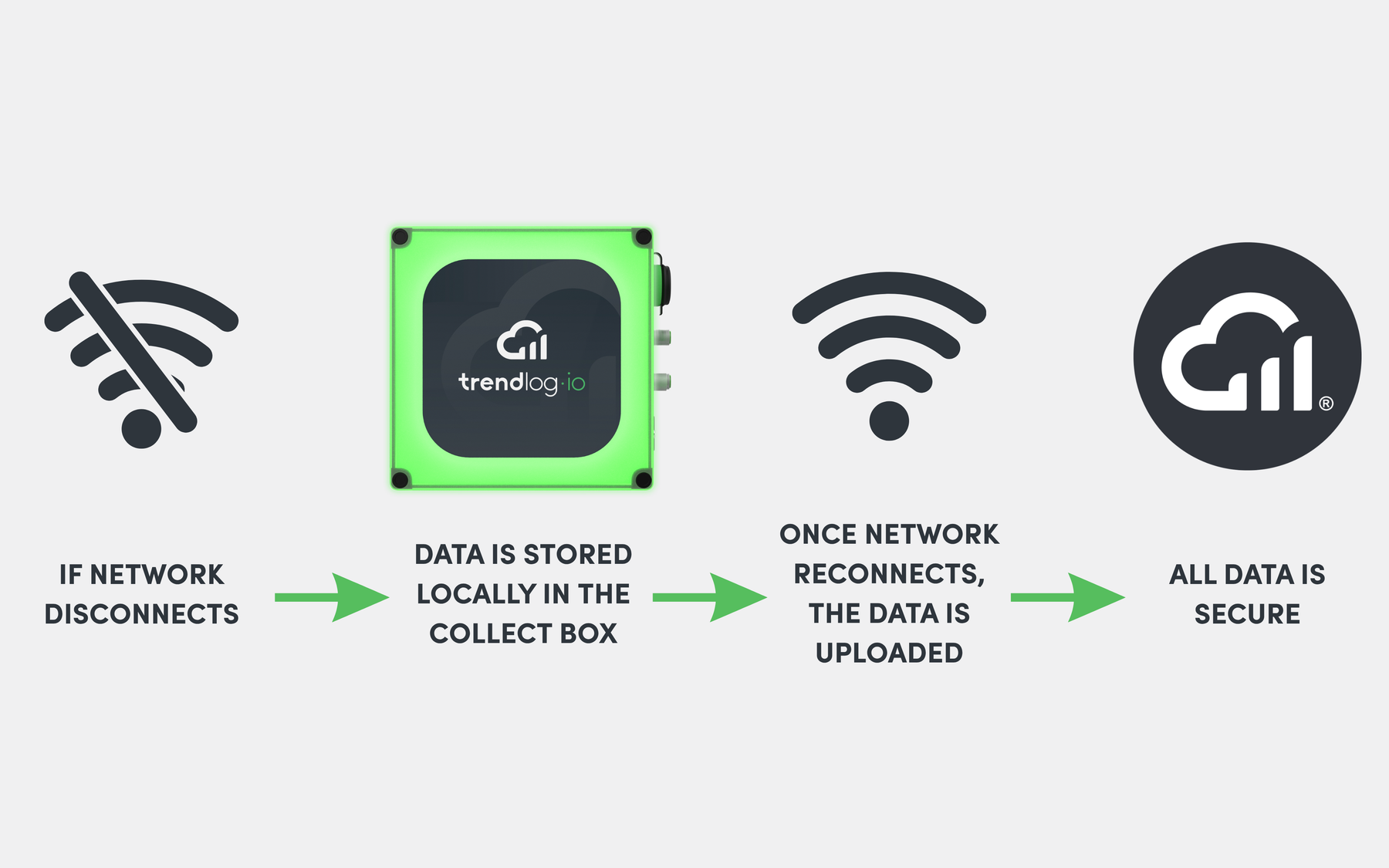

Reliable Data Collection
The solution is built with reliability in mind. If the network connection is interrupted, the device continues collecting data locally and automatically uploads it once the connection is restored. This ensures no data is lost.
Your link to the trendlog production suite

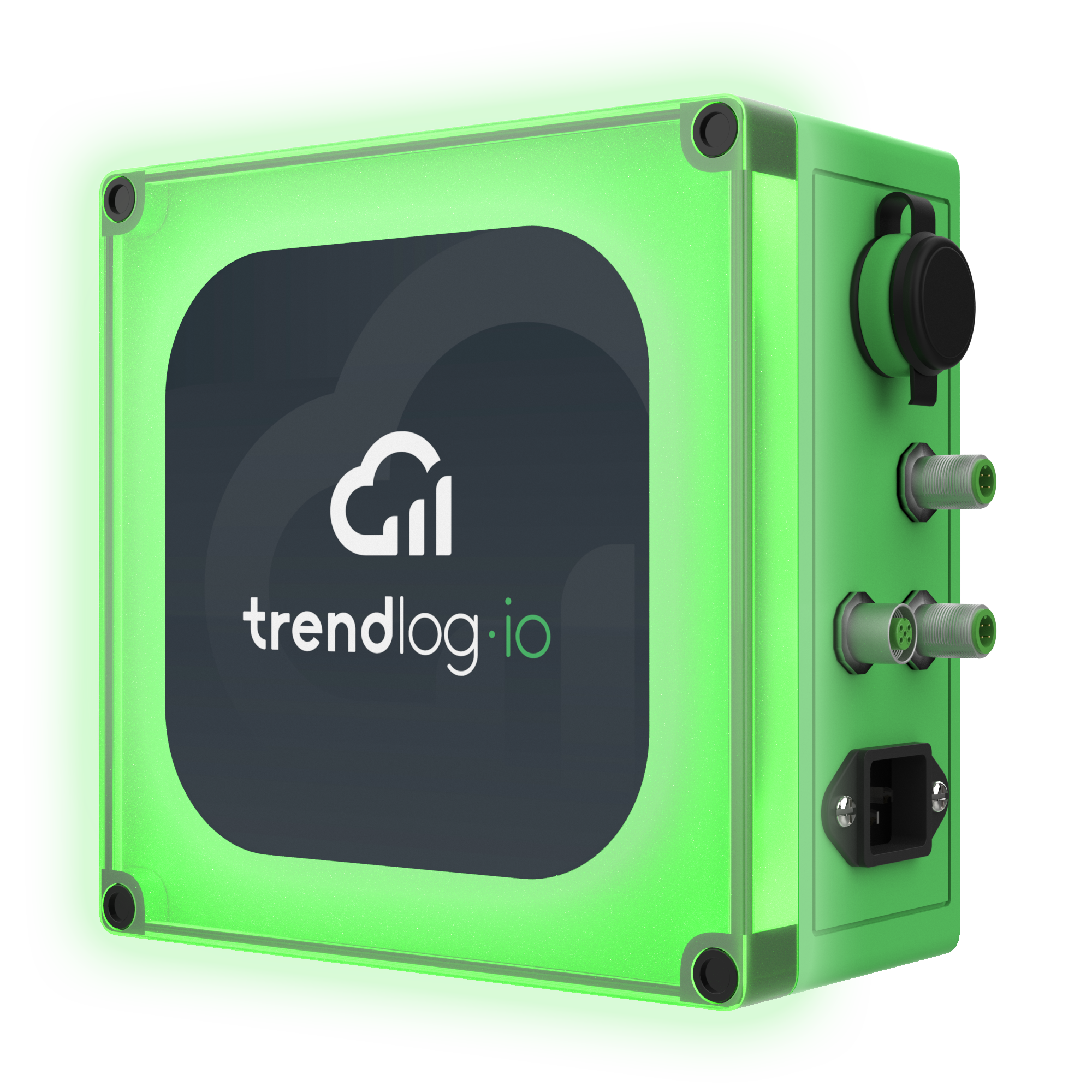

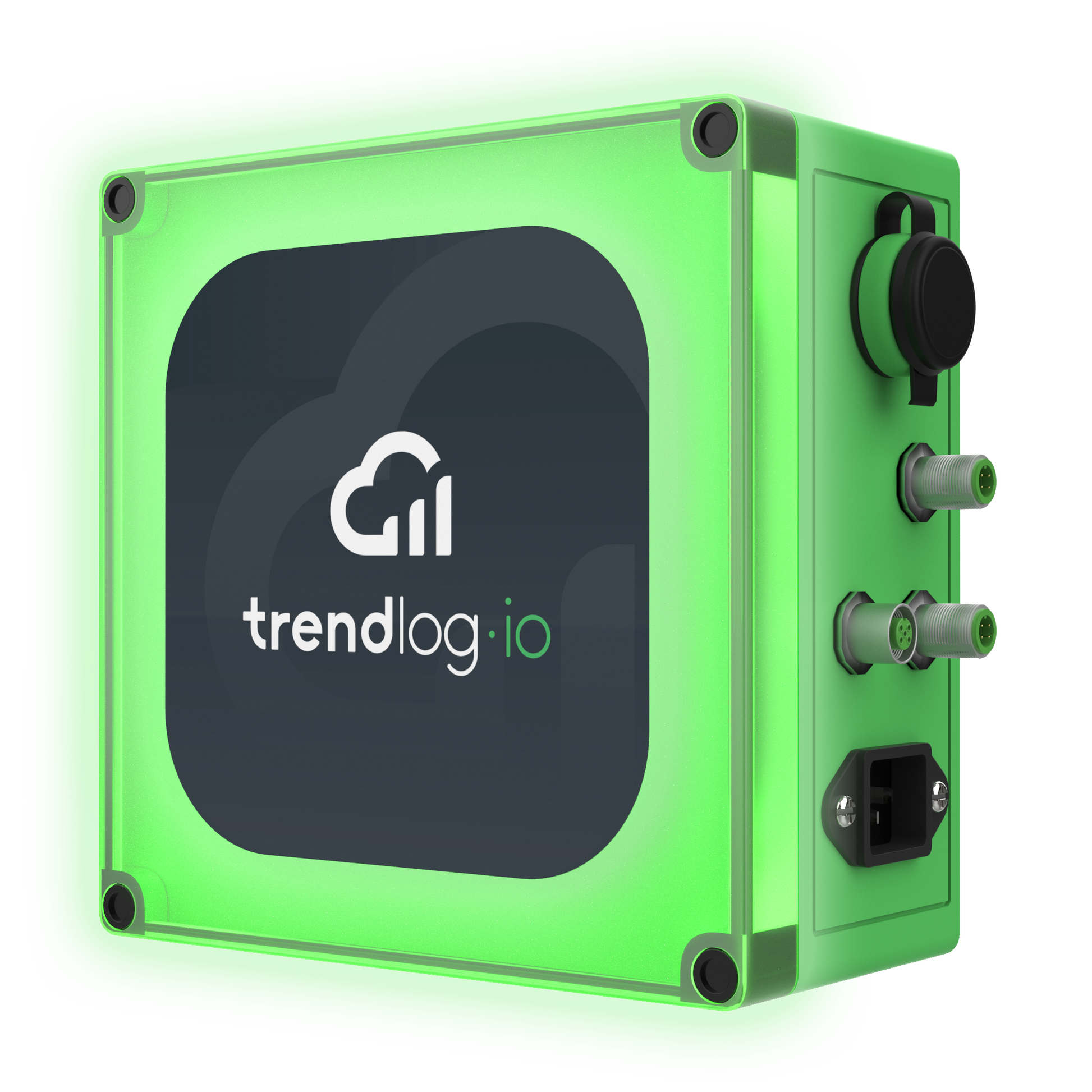

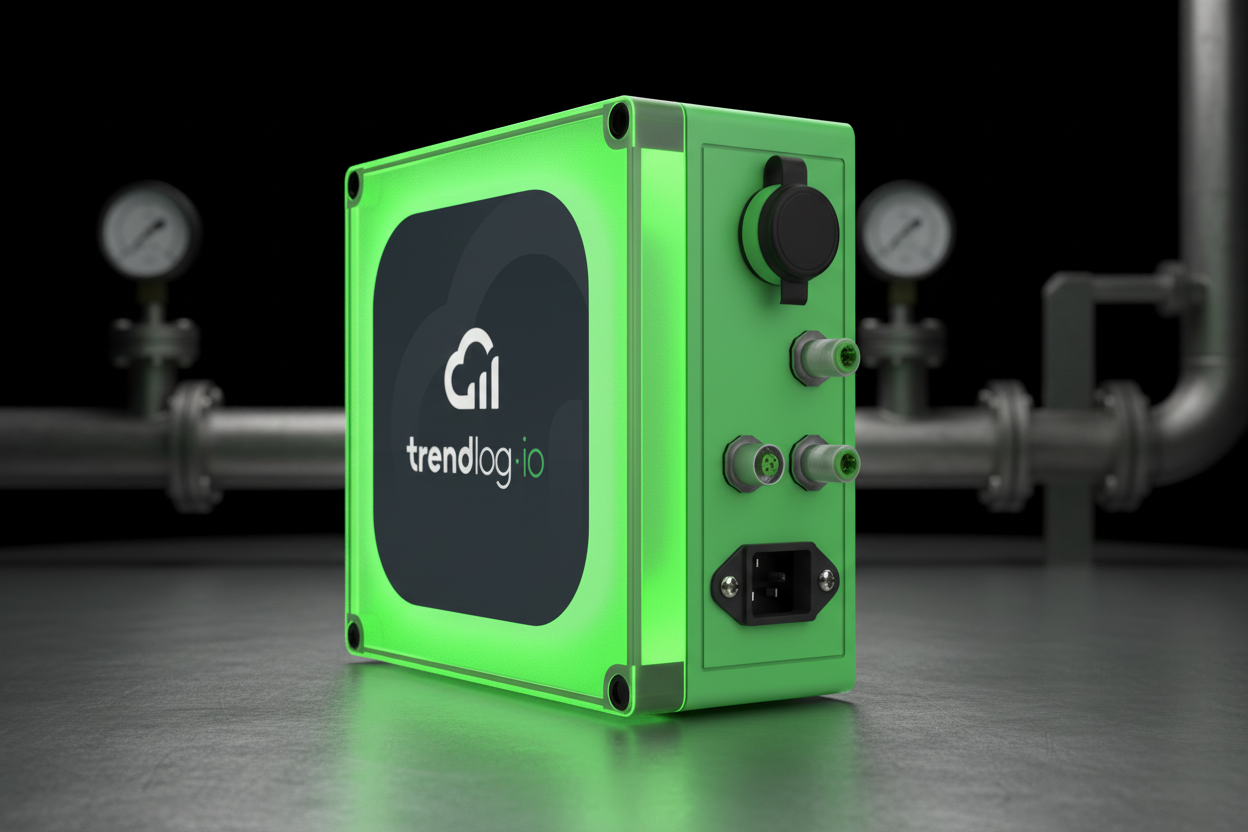

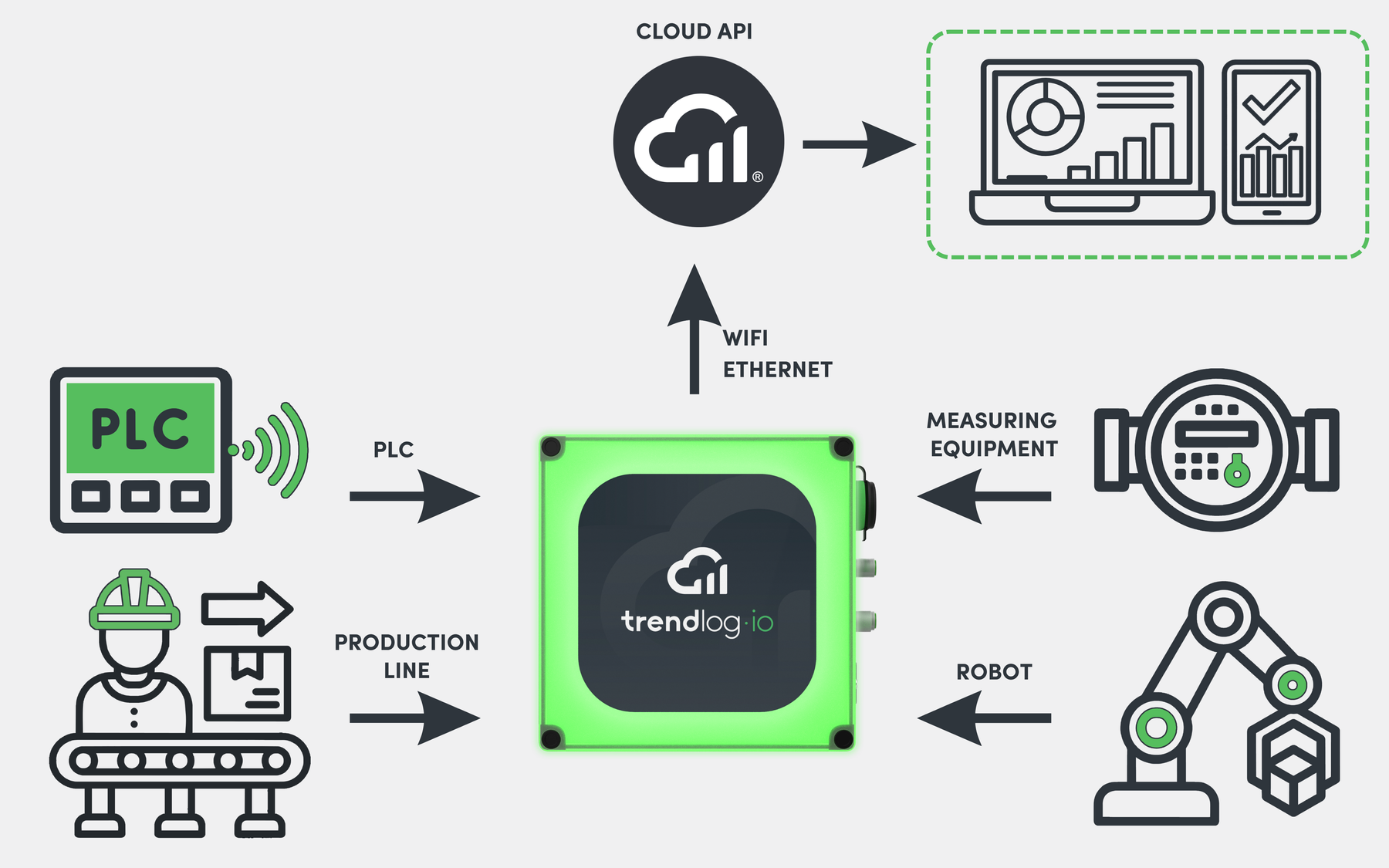

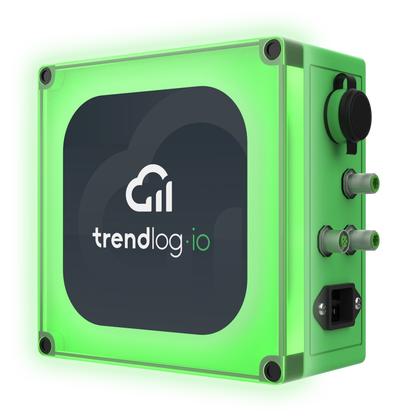

Trendlog COLLECT is designed to act as the link between your physical equipment and the Trendlog CLOUD platform. It enables LIVE data collection for TrendOEE, MaintenancePlanner, TrendENERGY, and TrendFORMS – unlocking automated insight and action across your production.
Building norm
EN 60204-1
Length
182 mm
Width
180 mm
Height
90 mm
IP rating
IP54
Material
Polystyrol
Gasket material
Polyurethane
Operating temperature
5-35 °C
System earthing
TN-S
Power supply
230 VAC
Frequency
50/60 Hz
Total load
1 A
Sensor input CNT1
Unit counter, M12 (4 poles) female, 24 VDC, max 4 A
Signal input CNT2/RUN
Run-time or unit counter, optocoupler, M12 (4 poles) male, 0-24 VDC
LAN
Ethernet, DHCP (dynamic IP)
WiFi
Used when DHCP is not available, fallback IP
